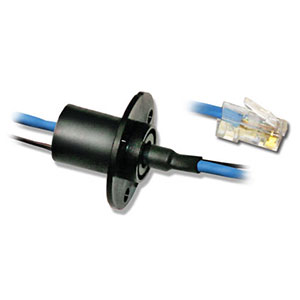

Capsule slip ring AC7195EnetSR
The capsule slip ring is the miniature slip ring which has small size to transmission the lowe current, data, ethernet for the devices has very limited space requirements. normally is 2A each channel
This capsule slip ring has different size and flanges to meet customer installation requirements and also has options to the Water proof design for harsh condition.

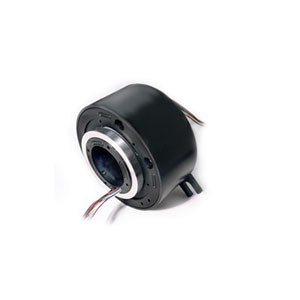

相关产品
产品特性
规格

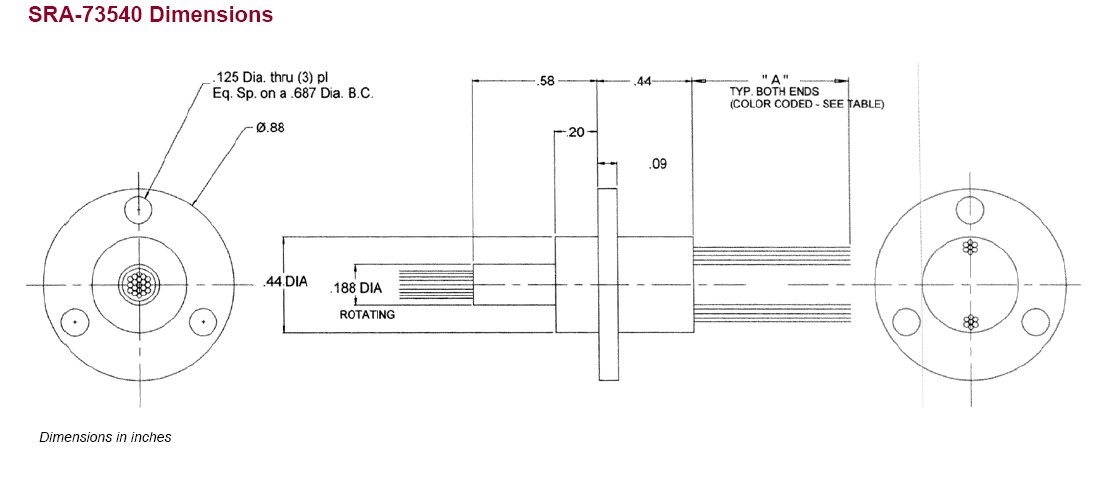

尺寸图纸
手册
● different size and flanges
● very compact size OD 12mm, 18mm, 22mm, 25mm
● rotation speed up to 200rpm
● Teflon wires with silver plated conductors
● Gold to Gold contacts
● low electric noise less than 20 milliohms
● operation speed -20 to +70 °C
● long life time of 10million cycles
● low roation torque
| SLRA112 | |
| Circuits Number 路数 | 6 12 |
| Current each circuit每路电流 | 2A |
| Voltage AC /DC 电压 | 120V |
| Insulation resistant 绝缘电阻 | 500MΩ |
| Breakdown Voltage | 500V @50HZ 60S |
| Operation Temperature | -20°C to +80°C |
| Max rotation speed | 200rpm |
| Contact Material | Gold to Gold |
| Electric Noise(New) | 20 milliohms max |
| Circuit Number | Length |
| 6 | 15mm |
| 12 | 21mm |
